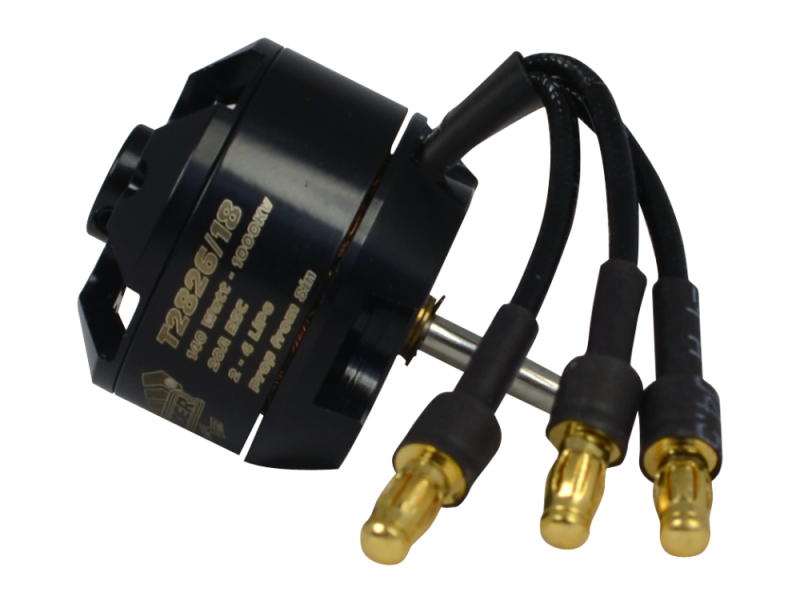

2826/18 1000KV TORNADO THUMPER V3 - BRUSHLESS OUTRUNNER RC MOTOR
2826/18 1000KV TORNADO THUMPER V3 - BRUSHLESS OUTRUNNER RC MOTOR
The 2826/18 1000KV motor is part of Overlander's Tornado Thumper V3 range. These motors are manufactured to Overlander’s demanding standards, using the finest quality components and state of the art CNC machine tools.
| KV (rpm/V) | 1000 |
|---|---|
| Power | 140W |
| Idle Current | 0.5A |
| Maximum Amp Draw | 20A |
| Motor Type | Outrunner |
| Recommended ESC | 20A |
| LiPo Voltage Range | 2 - 4S |
| NiMH Voltage Range | 6 - 12S |
| Minimum Propeller Size | 8 X 5 (with 4S LiPo) |
| Maximum Propeller Size | 9 x 4.7 (with 2S LiPo) |
| Shaft Diameter (mm) | 3 |
| Motor Poles | 14 |
| Connector | 3.5mm Gold |
| Diameter (mm) | 27.8 |
| Length (mm) | 24 |
| KV (rpm/V) | 1000 |
| Weight (g) | 40 |
