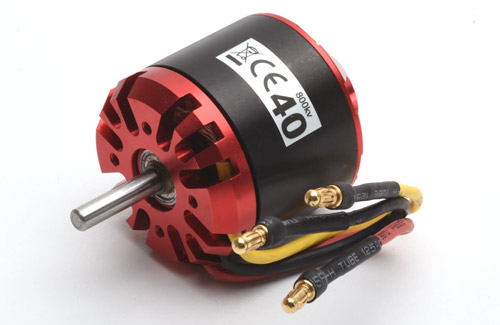

Ripmax Quantum II 40 Brushless Motor

Description

http://trade1.ripmax.com/default.asp" method="get" name="WebItemDescription" style="margin: 0px;">

The Ripmax Quantum II range of electric motors are designed to offer performance, efficiency, build quality and value-for-money in a wide array of sizes. Every motor includes a mounting kit comprising of a tough metal motor mount and a CNC metal prop adaptor that bolts to the can. For easy connection to the speed controller the motor comes pre-wired and the corresponding gold connectors are supplied for the ESC.

This .40 size motor is designed as an equivalent to a .40/46 2-stroke glow IC motor and is suited to a wide variety of sports and scale models. For a .40 use 4 cells and for .46 use 5 cells

.40 2-Stroke Equivalent Setup:
• 4S 4500mAh Li-Po
• 60A Brushless ESC
• 12x9W" Propeller

Specification

Connectors: 4mm Bullet

Length: 50mm

Weight: 210g

Max. Continuous Current (Amps): 60A

Diameter: 42.5mm

KV RPM: 800

Thread: M8

LiPo: 3 - 7 Cells

Speed Controller: 60A Brushless (Req'd)

Shaft dia: 5mm
