Mtroniks Viper Marine10

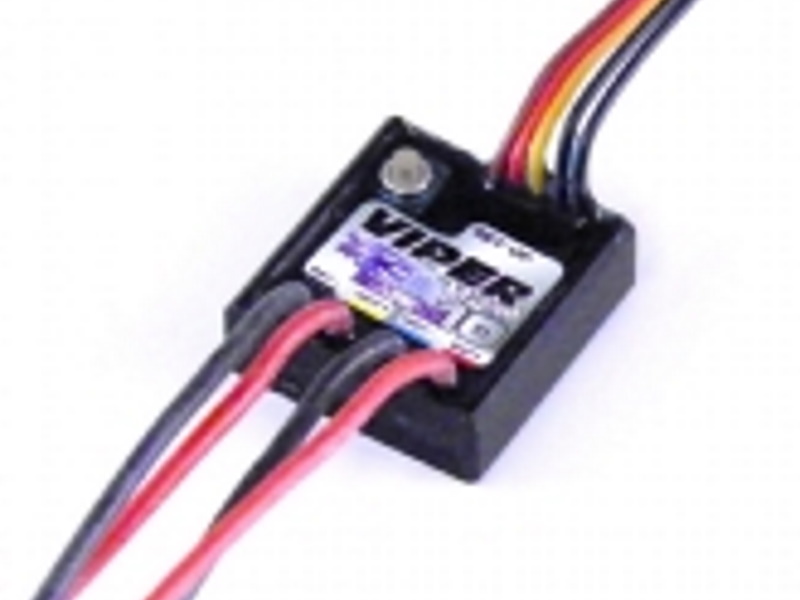

The MicroViper Marine10 is a miniature Brushed Speed Controller designed specifically for use in small scale, low power RC boats.
The MicroViper Marine10 has a very small footprint, measuring just under 26.0mm square, making it seem even smaller is the fact that is only an incredible 9.0mm high!!
It has a 10Amp motor limit, what this means is that you can use any, DC brushed motor, as long as the current drawn by that motor does not exceed 10Amps under load (with the prop connected, under water).
The microViper Marine10 is the perfect speed controller for anybody wanting to either upgrade their old speed controller for a no nonsense 10Amp limit reversible electronic speed control or for anybody who uses scale model RC boats at scale speeds and has very little space for their radio control equipment.
The Marine10 is a very popular choice from the ever popular line of Viper marine speed controls, this is due mainly to all the features that are included, such as a built in failsafe, 100% proportional, fine throttle control in both directions, and motor stall protection, which is a feature that cannot be overlooked when a possible encounter with weeds is always just round the corner. Not to forget that the Viper Marine range of speed controllers are all completely 100% waterproof and designed to work on fully charged 12V Lead Acid batteries!
Downloads
Technical Specification
Product Type | Speed Controller Only |
Motor Type | Brushed |
Current Limit | 10 Amps |
Direction | Forwards/Reverse |
Battery Type | NiCAD/NiMH/Lead Acid |
Lipo safe | No |
Operating Voltage | Maximum 12.0 Volts |
Set up | Digital 1-touch |
BEC | 1.2A |
Motor Short circuit protection | Yes |
Thermal overload protection | Yes |
Failsafe | Built in |
Dimensions | L26.0 x W26.0mm x H9.0mm |
Weight | 23.0g |
