  1. DESCRIPTION

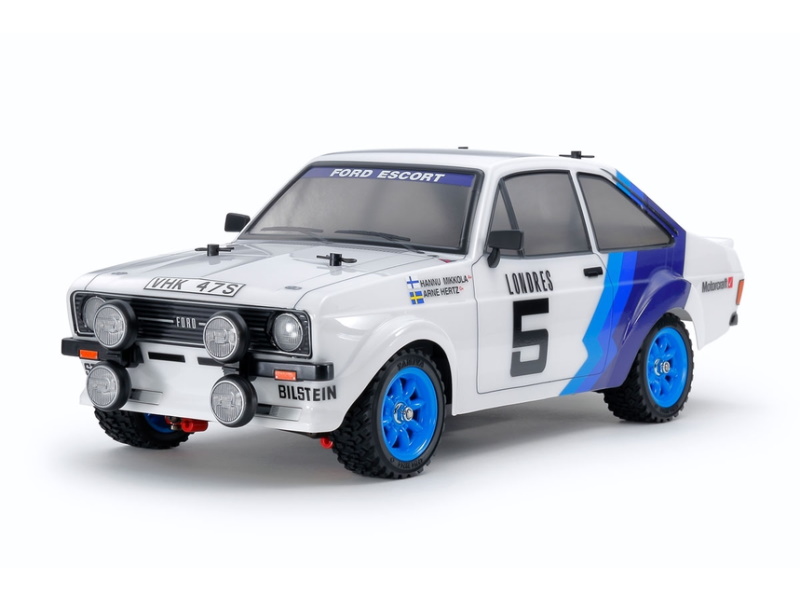

    This R/C model assembly kit recreates the classic Ford Escort Mk.II in rally racing form. It was a RAC Rally Champion from 1975-1979. The pre-painted body sits on top the Tamiya MF-01X chassis that is capable both on asphalt and flat dirt surfaces.

    MF-01X - Compact 4WD At Home on a Range of Surfaces

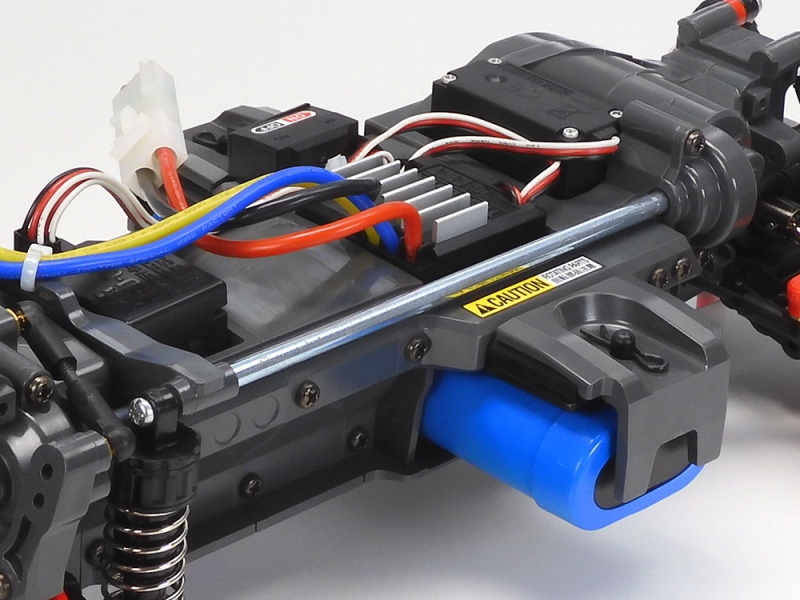

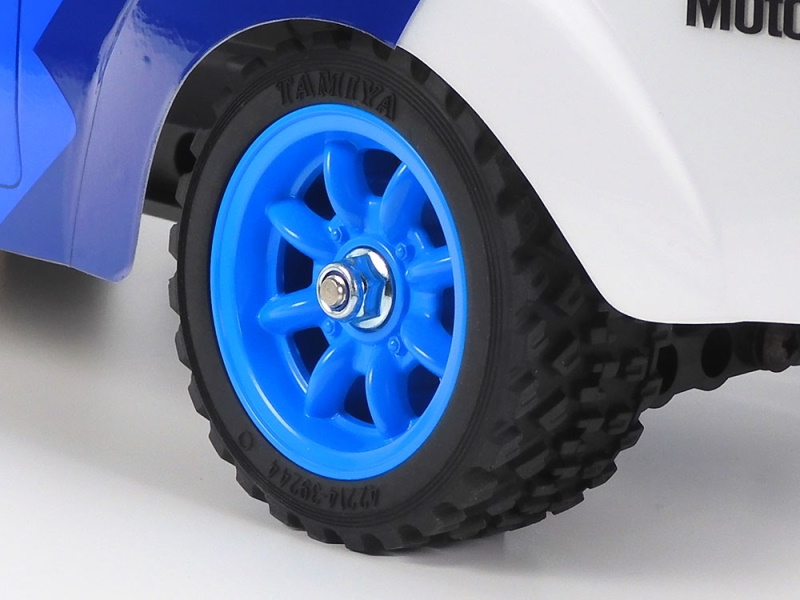

    Based around a tough monocoque frame with integrated gearboxes, this compact 4WD chassis gives a thrilling drive whether you take it on road or flat dirt surfaces. It features a rear-mounted motor, with gear-driven rear wheels and a propeller shaft taking power to the front. Both front and rear gearboxes have differential gears. The battery pack location in the chassis center secures excellent balance, while 4-wheel independent double wishbone suspension employs friction dampers. Rally Block tires with width/diameter of 27/69mm are also included.

    • 1/10 scale R/C model assembly kit. Length: 414mm, wheelbase: 239mm (L).
    • Polycarbonate body pre-painted in White.

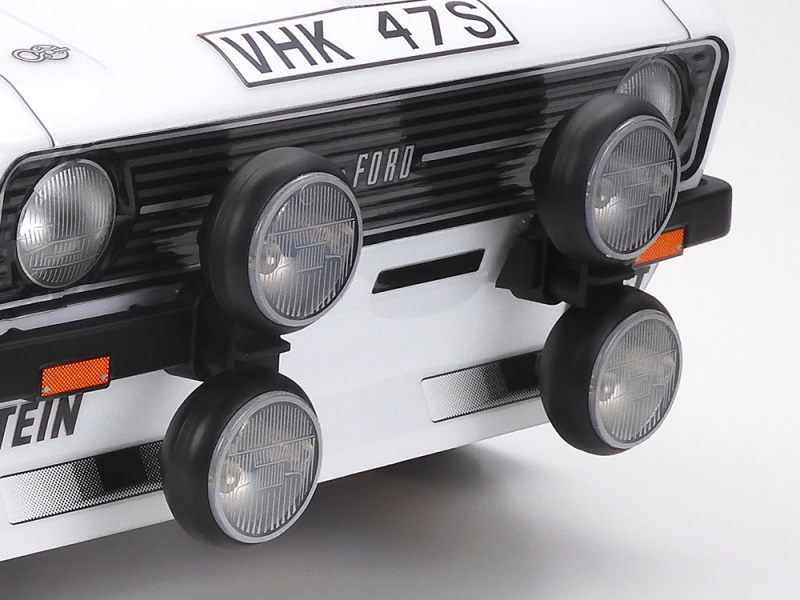

    • Separately molded plastic components are included to recreate bumper, side mirrors and fog lamps.

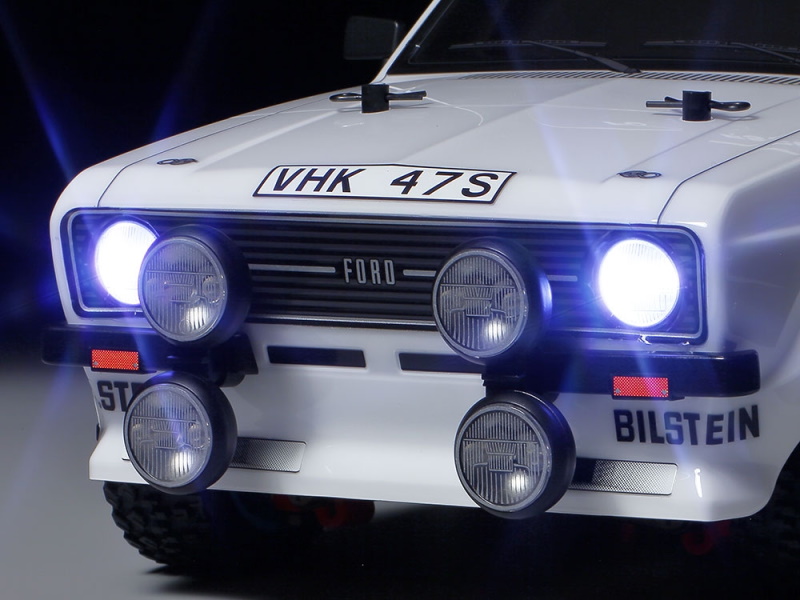

    • Polycarbonate front and rear light cases are compatible with separately sold Tamiya 5mm LEDs.
    • Stickers are included to recreate blue livery sections, sponsor logos and more.

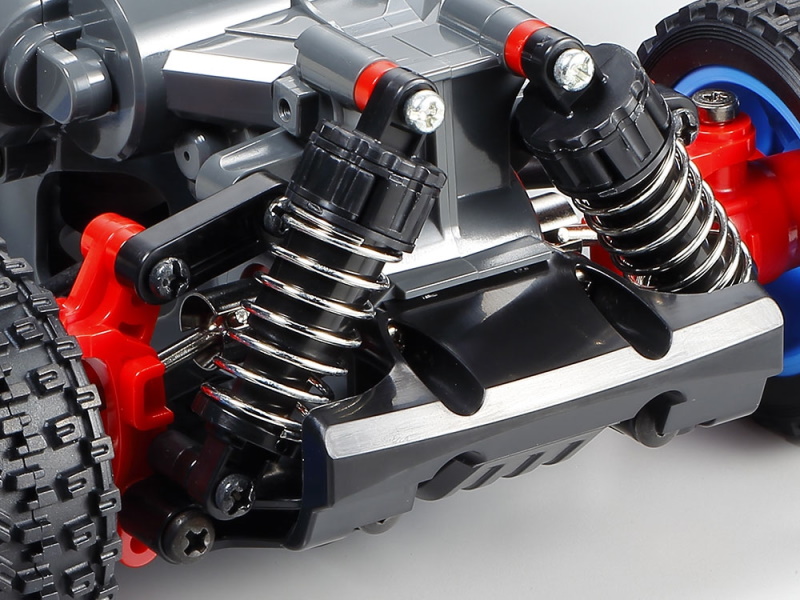

    • The MF-01X is at home on-road or on flat dirt, thanks to 4-wheel double wishbone suspension.

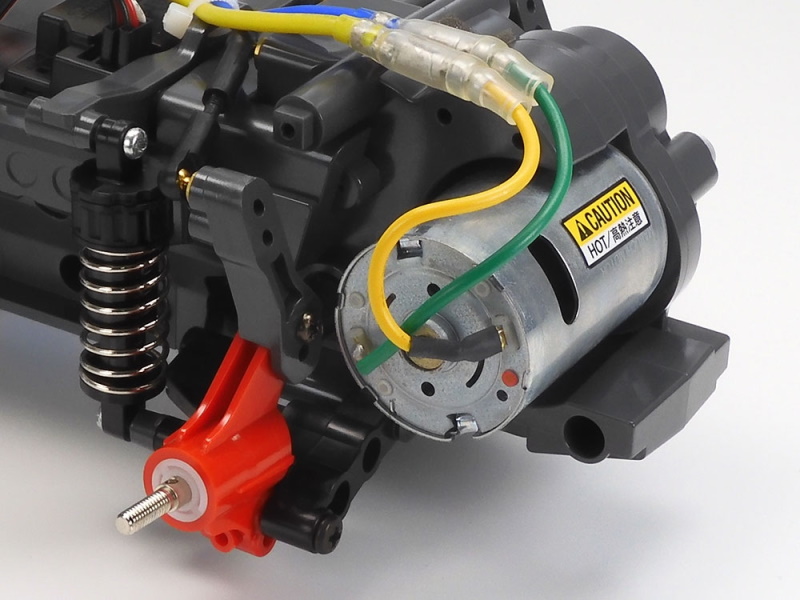

    • Power from the rear mounted motor is transmitted by gear differential to the rear wheels, and via a propeller shaft to the front. The chassis can be converted to S and M wheelbases with separately sold propeller shafts.
    • A host of Hop-Up Option parts are available to tune the MF-01X chassis.
    • Tamiya Torque Tuned Motor included.
    • Includes Tamiya TBLE-02S ESC (electronic speed control) Capable of running sensor brushless motors and brushed motors alike. (21.5 Turn BL motor limit) (23 Turn brushed motor limit)
    • Requires: 2-channel radio, steering servo, 7.2volt battery and compatible charger to complete.

    RC FORD ESCORT MK.II RALLY

    1. SPECIFICATIONS

      • Adjustable Gear Ratio Yes
      • Bearings Plastic bushing
      • Body Material Polycarbonate pre-painted body
      • Body Stickers Included
      • Chassis Material ABS Plastic
      • Chassis Type MF-01X
      • Construction Type Assembly Kit
      • Drive Type 4WD
      • Electronic Speed Control (esc) Includes Tamiya TBLE-02S ESC (electronic speed control) Capable of running sensor brushless motors and brushed motors alike. (21.5 Turn BL motor limit) (23 Turn brushed motor limit)
      • Motor 540-brushed type
      • Required To Complete 2-channel radio, steering servo, 7.2volt battery & battery charger
      • Scale 1/10
      • Shock Damper Friction damper
      • Suspension 4-wheel fully independent double wishbone
      • Terrain Use Multi-Purpose
